Thinker X400
High-Speed 3D Printer for
Professional Large-Scale Production
Launching Soon on Feb 25
-
Limited Special Deals to our subscribers
-
Beta-test opportunities
-
Exclusive content and brand updates
Precision and Performance Redefined
With a substantial build area of 400 x 400 x 400 mm, the Thinker X400 allows you to create large models that meet the demands of even the most intricate designs and multi-part projects.
Go Big.
Exceptional Build Volume.
Why Larger Build Volume?
Less Assembly
More Intricate Modle Creation
Multiple Parts in One Batch
Larger Items

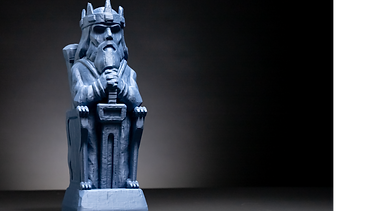

Model created by Printable Objects
Model created by STLFLIX
Model created by sidnaique
Model created by Reavenk
Up to 35 mm³/s
0.1 mm
0.08 to 0.32 mm
Layer Thickness
Layer Resolution
Flow Rate
Reliable Precision for Every Project

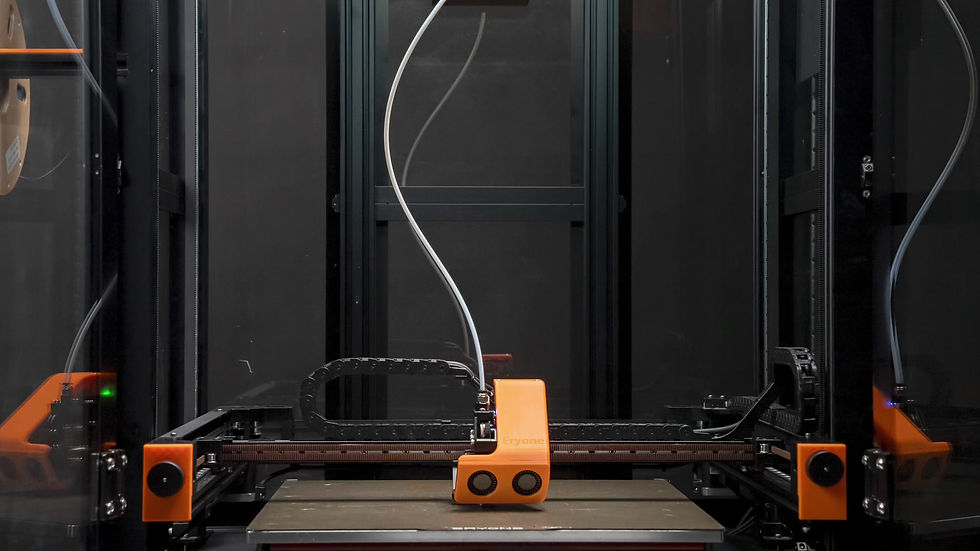

Stable and Precise Core XY Structure
The Thinker X400 utilizes a Core XY structure with high-quality linear guides for stable, precise movement. This design reduces vibrations, ensuring smooth motion of the print head and consistent layer alignment.
Up to 10,000 mm/s²
Up to 500 mm/s
Print Speed
Acceleration
Faster than Ever
Print Time: 6h45m
Size: 140*100*125mm
Filament: Matte Gradient PLA
Print Time: 4h30m
Size: 250*260*35mm
Filament: Standard PLA Navy Blue
Print Time: 5h51m
Size: 97*97*300mm
Filament: Standard PLA Navy Blue
Model created by Broken STLFLIX
Model created by Broken Anvil Miniatures
Model created by Broken Printable Objects
Streamlined Workflow
5-inch Touchscreen
5-inch capacitive touchscreen for intuitive control.
Enhanced Safety for Worry-Free Printing
Acrylic Shell
The fully enclosed acrylic shell ensures safety and reduced noise (50-60 dB).
50-60 dB
Reduced Noise
Carbon Air Filter
The Think X400 features a high-efficiency activated carbon filter for a cleaner workspace.
Versatile Material Compatibility
The Thinker X400 is compatible with a wide range of filaments including PLA, ABS, TPU, and Nylon for unlimited creativity.
PLA, PETG, TPU, ABS, ASA, PP, PC, PA-GF, PA-CF, Glass Fiber Reinforced, Carbon Fiber Reinforced.
PLA
TPU
ABS
Nylon
Specification
Machine Model | Thinker X400 High-Speed 3D Printer |
Print Size | 400 x 400 x 400 mm |
Extruder | Single-head direct-drive extruder |
Nozzle | Default 0.4 mm; supports 0.6 mm, 0.8 mm, and 1.0 mm |
Nozzle Type | 1 hardened steel nozzle, with 1 spare |
Filament Diameter | 1.75 mm |
Print Temperature | Up to 300°C |
Platform Temperature | Up to 120°C |
Filament | PLA, PETG, TPU, ABS, ASA, PP, PC, PA-GF, PA-CF, Glass Fiber Reinforced, Carbon Fiber Reinforced |
Speed | Up to 500 mm/s |
Acceleration | Up to 10,000 mm/s² |
Flow Rate | Up to 35 mm³/s |
Print Precision | 0.1-0.3 mm |
Layer Thickness | 0.08-0.32 mm |
Print Platform | Magnetic, flexible double-sided PEI plate |
Leveling Method | 4 independent Z-axes, 25-point grid auto-leveling |
Display Screen | 5-inch capacitive touchscreen |
Enclosure | Fully enclosed, fully transparent acrylic shell |
Air Filtration Device | High-efficiency activated carbon filter |
Firmware | Klipper |
Software | Cluster 3D printing production management software |
Noise Level | 50-60 dB |
Printing Method | Ethernet; USB; Wi-Fi |
Monitoring Camera | Supported |
Filament Detection | Supported |
Filament Tangled Detection | Supported |
Emergency Stop Switch | Supported |
Lighting | Supported |
Device Dimensions | 685 x 634 x 810 mm |
Package Dimensions | 830 x 725 x 1070 mm |
Product Net Weight | 58.5 kg |
Product Gross Weight | 74 kg |
Power Supply | 85-264VAC, 50/60Hz |
Power Consumption | 680W (peak), 200-300W (operational) |
Slicing Software | Orca Slicer |
Supported Formats | STL, STEP |
Certifications | CE/FCC/RoHS/CCC |
Language | Chinese/English |
